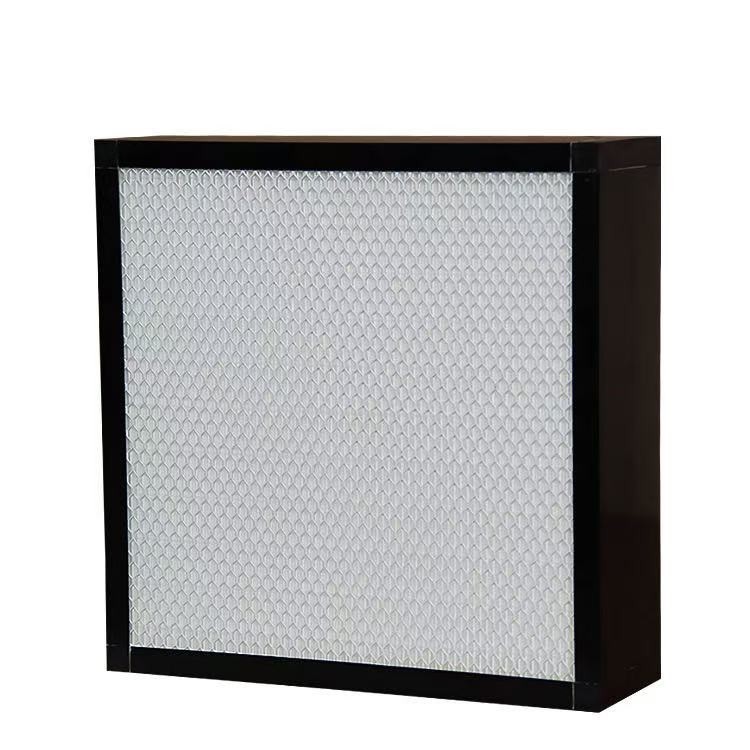

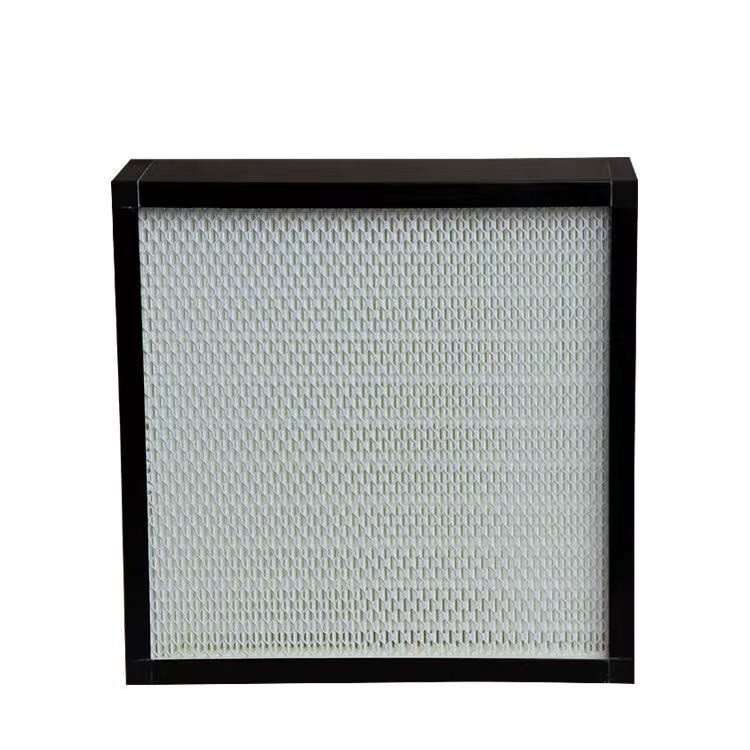

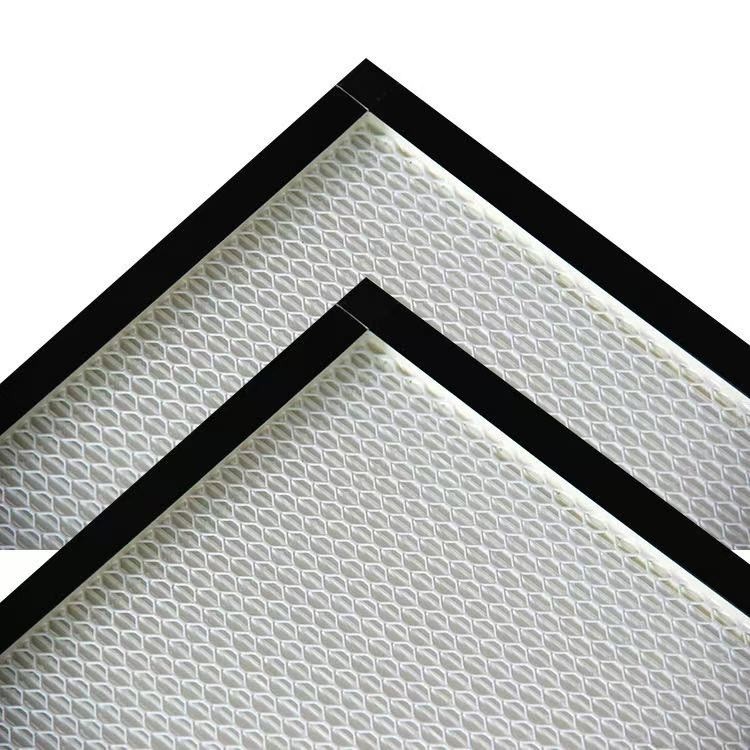

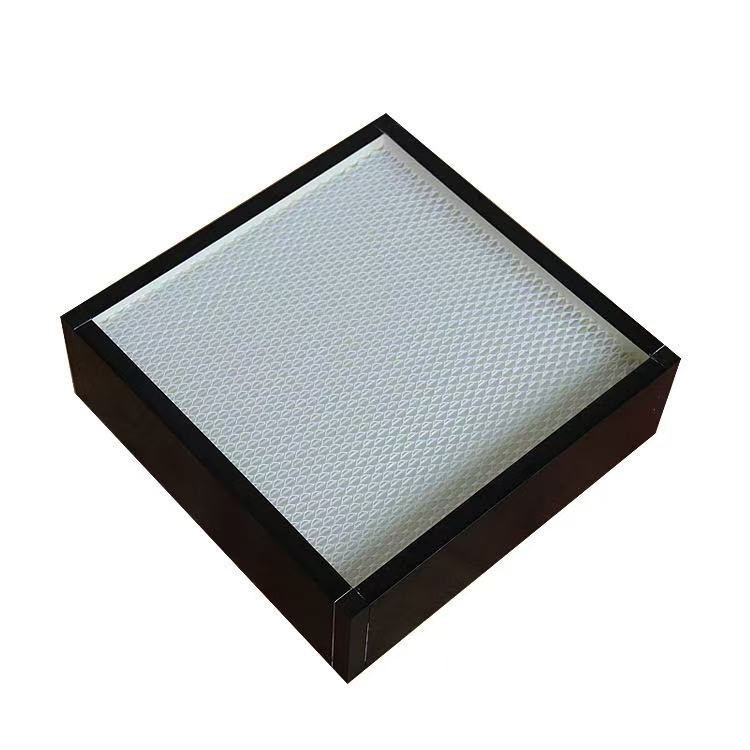

High-performance MERV 11 to MERV 16 minipleated panel filters for superior air filtration. Ideal for HVAC systems in cleanrooms, healthcare, and industrial settings. Compact, efficient, and designed for optimal air quality in sensitive environments. FEATURES: - Mini-pleated design to reduce operating costs - Wide range of applications with a compact structure - Ultra-thin design for space-saving installation - Available for custom sizes
Amorair mini-pleated low-resistance HVAC filters utilize synthetic fiber media that effectively capture dust, pollen, and larger particles. The compact design enables a higher surface area & a stronger dust-holding capacity, enhancing airflow while maintaining filtration efficiency. Ideal for residential and commercial applications.
Frame Material Aluminum / Plastic / Galvanized steel / Stainless Steel
Media Low-pressure-drop Synthetic Fiber
U.S. Efficiency MERV11, MERV13, ERV14, ERV15, MERV16
Euro Efficiency M6, F7, F8, F9, E10, E11, E12
Max Temperature 60 °C (140 °F)
Sealant Polyurethane/ Hot Melt Adhesive
Faceguard Optional
Depth 30mm(1.2")/50mm (2″) / 70mm (2.75″), custom upon request
