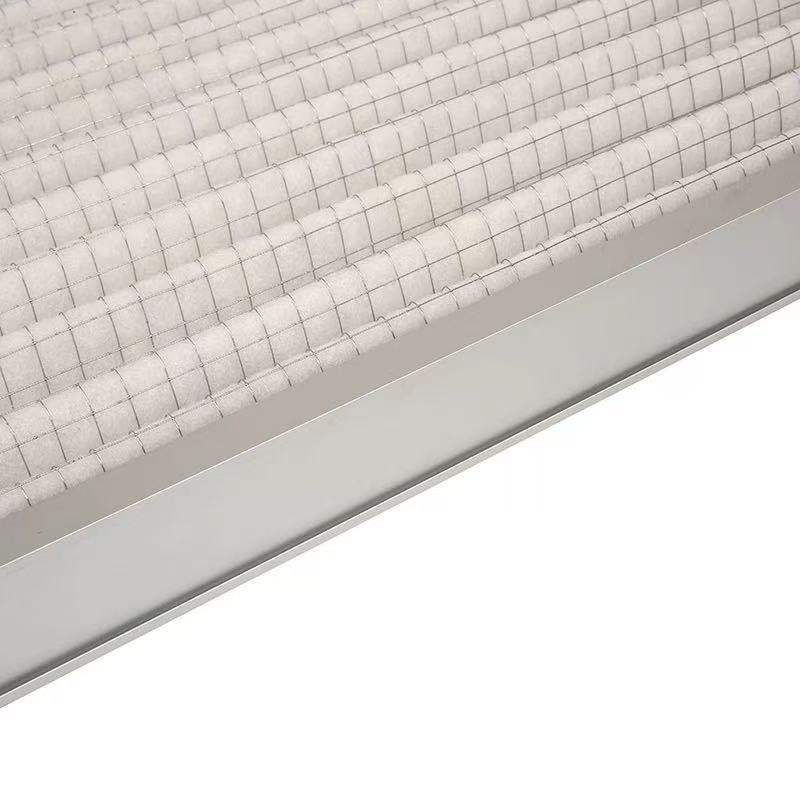

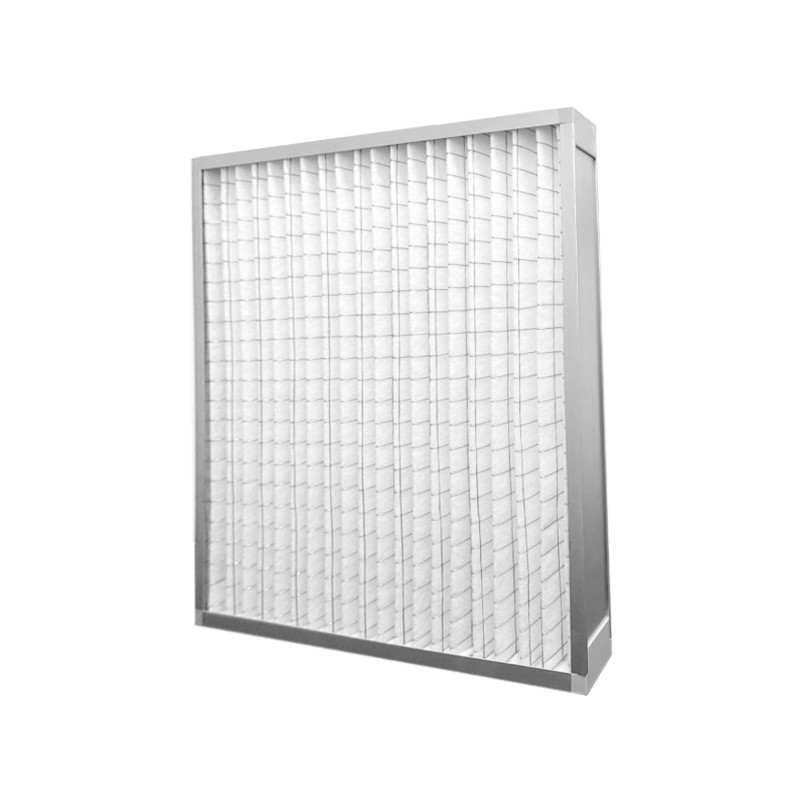

Amorair pleated panel filters with aluminum frame are typically placed at the air inlet of ventilation systems as pre-filters to capture large particles of pollutants, protect high-efficiency filters, and ensure the normal operation of the entire ventilation system. FEATURES: - Robust construction, aluminum frame & metal support grid. - Pleated design with high dust holding capacity. - Low resistance filter materials to save energy. - Available for custom sizes

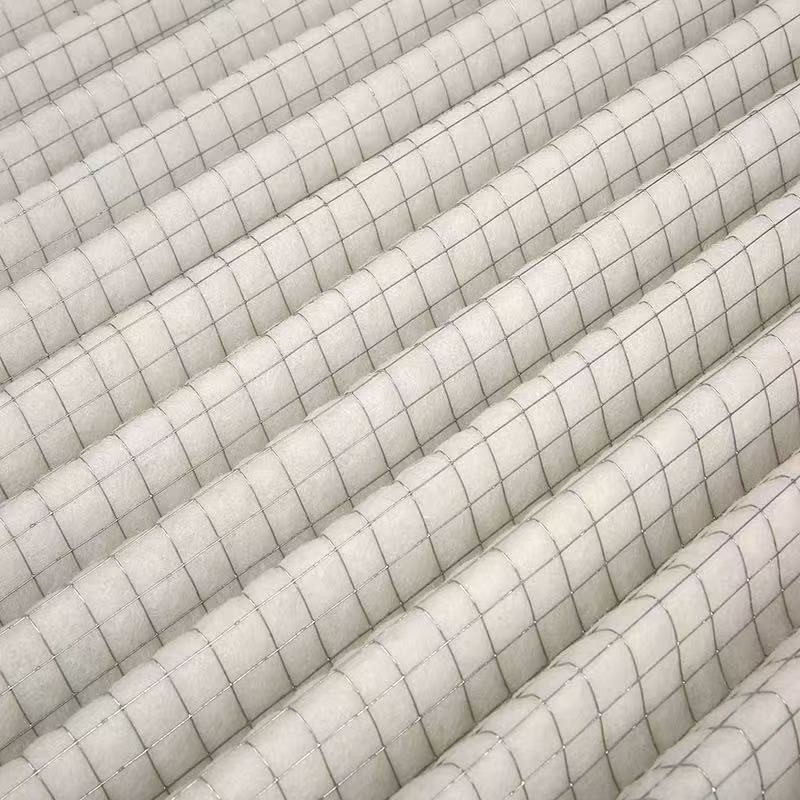

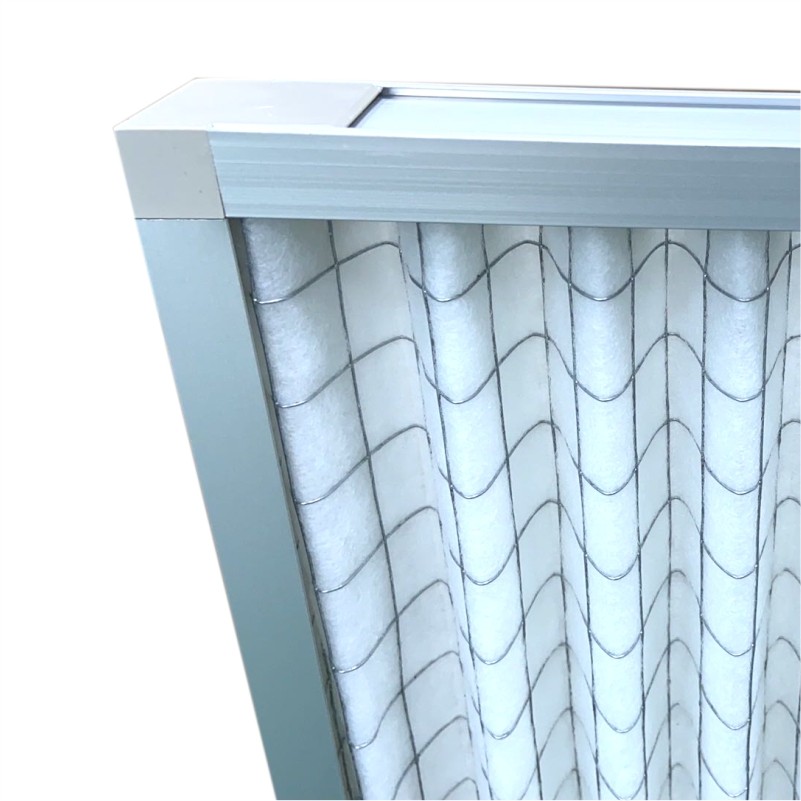

Constructed with a rigid aluminum alloy frame – available with ABS plastic corners or aluminum alloy corners – Amorair pleated panel filters deliver exceptional structural integrity and vibration resistance for stable, long-lasting operation.The filtration media utilizes advanced polyester fiber pleats with integrated mesh reinforcement. This innovative design delivers two critical advantages:
>> Ultra-Low Initial Resistance for optimized energy efficiency
>> Maximized Dust Holding Capacity extending service life while maintaining consistent airflow
Frame Material Aluminum
Media Synthetic Fiber
U.S. Efficiency MERV 6,MERV8
Euro Efficiency G3,G4
Max Temperature 70 °C (158 °F)
Connection Angle Aluminum Alloy/ High Temperature Resistant Plastic
Replacement Rate 3-6 Months
Depth 46mm (1.8″) /96mm (3.8″)
