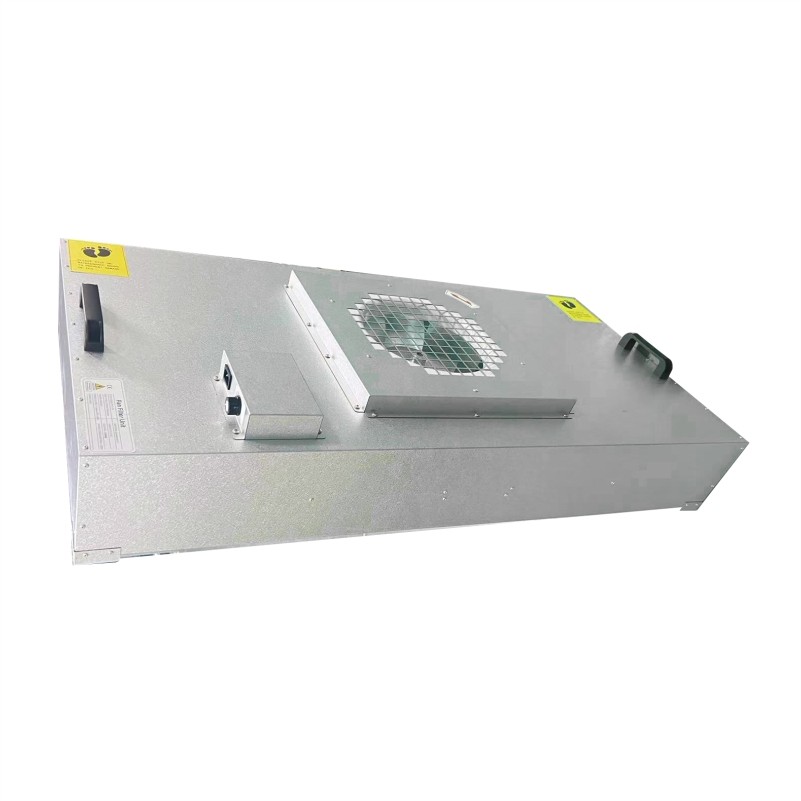

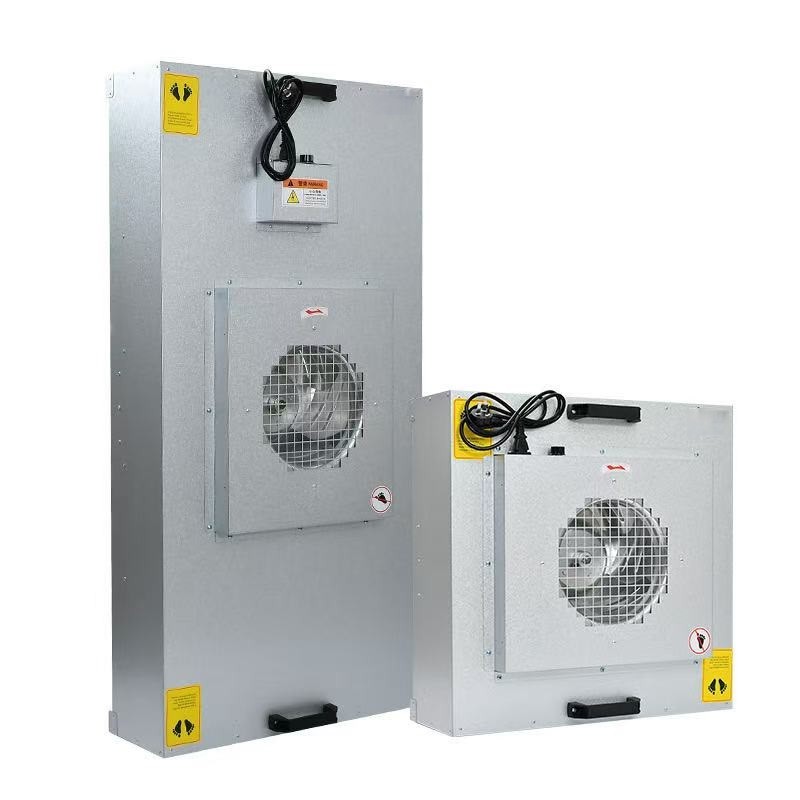

Amorair fan filter unit（FFU）, a terminal device of air filtration system, mainly applied to cleanrooms and laboratories (environments where need high air quality ). The control system can be used for data monitoring and fan adjustment to ensure normal operation of the system. FEATURES: -Provides controlled airflow. - Helps manage temperature. - Equipped with HEPA or ULPA filter. - Designed to be energy-efficient
A Fan Filter Unit (FFU) is an air filtration system with an independent power source, typically mounted on the ceiling of cleanrooms. Its primary function is to maintain the levels of particulates and contaminants in cleanroom air through internal high-efficiency filters, ensuring product quality and the accuracy of experimental results.
DC Motor Series F-44EH
Wind Speed 0.45m/s ( 89 FPM )
Total Static Pressure 310 Pa
Cleanliness Level 10-level, 100-level, 1000-level,custom upon request
Power 150W
Noise 53.5 dB
Vibration 0.8 mm/s
Temperature 5℃～40℃
Humidity ≤85%RH（No moisture condensation）
- The wind speed values in the table are test values measured 0.15 m below the filter.
- The noise testing point in the table is located 1.5 m below the center of the HEPA outlet.
- The FFU power in the table is the power under the initial operating conditions of the FFU.
- Customized non-standard sizes are available for users.
