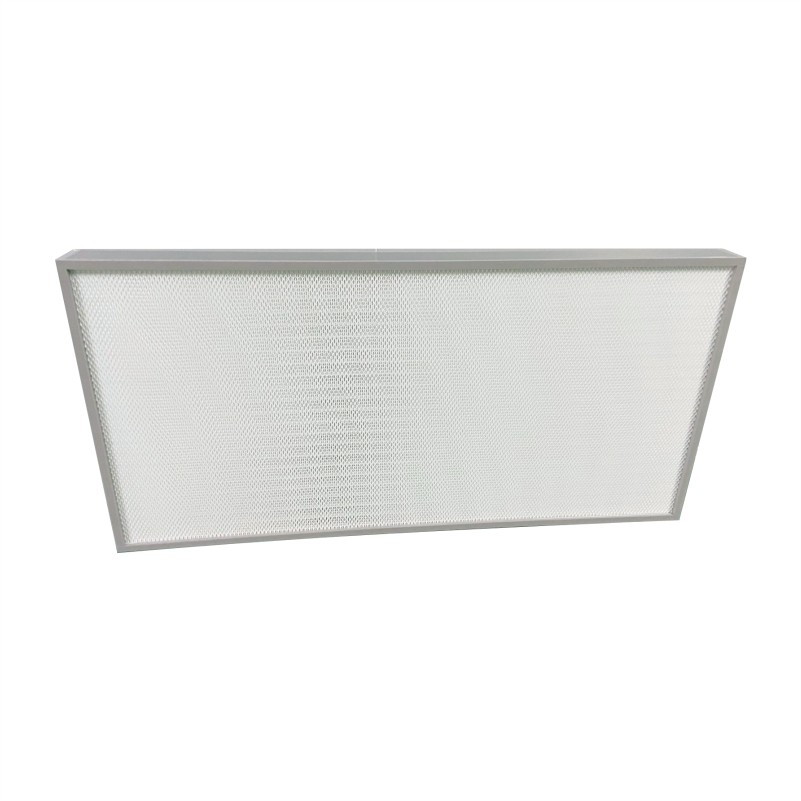

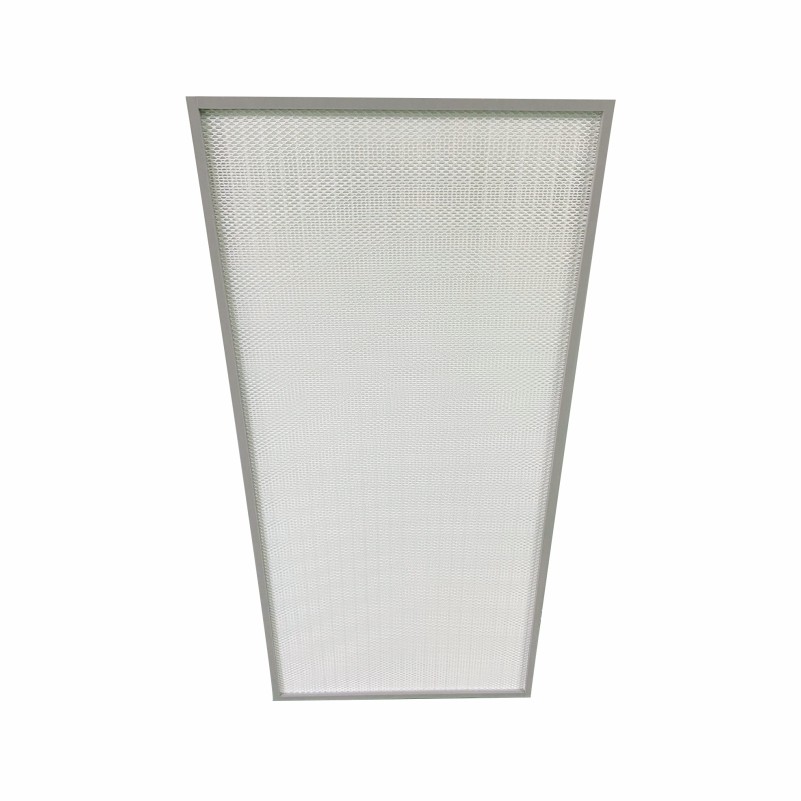

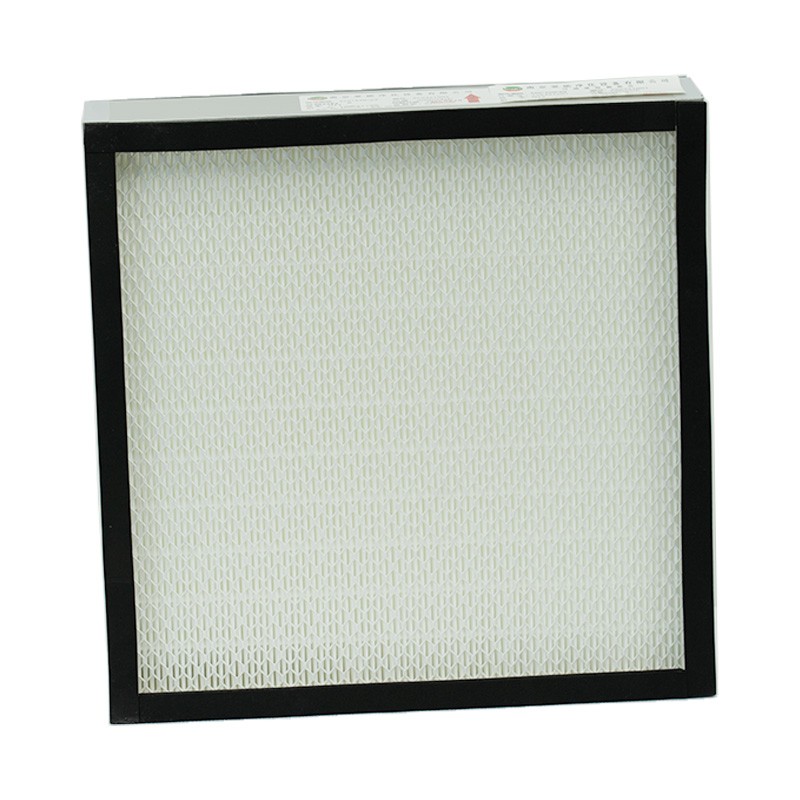

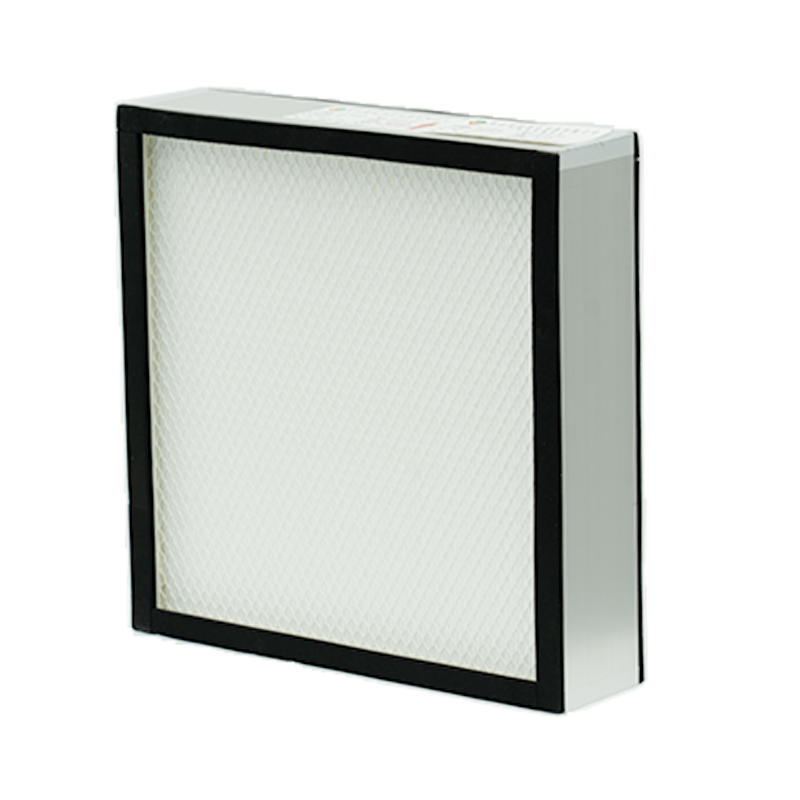

The mini-pleated HEPA filter strictly adheres to the EN1822 and ISO29463 testing standards, achieving a filtration efficiency of up to 99.99995% @MPPS. It is widely used in cleanrooms across various industries and different types of laboratories. FEATURES: - Mini-pleated design to reduce operating costs. - Wide range of applications with a compact structure to save space. - Ultra-thin design for space-saving installation. - 100% scan tested according to EN1822/ISO29463

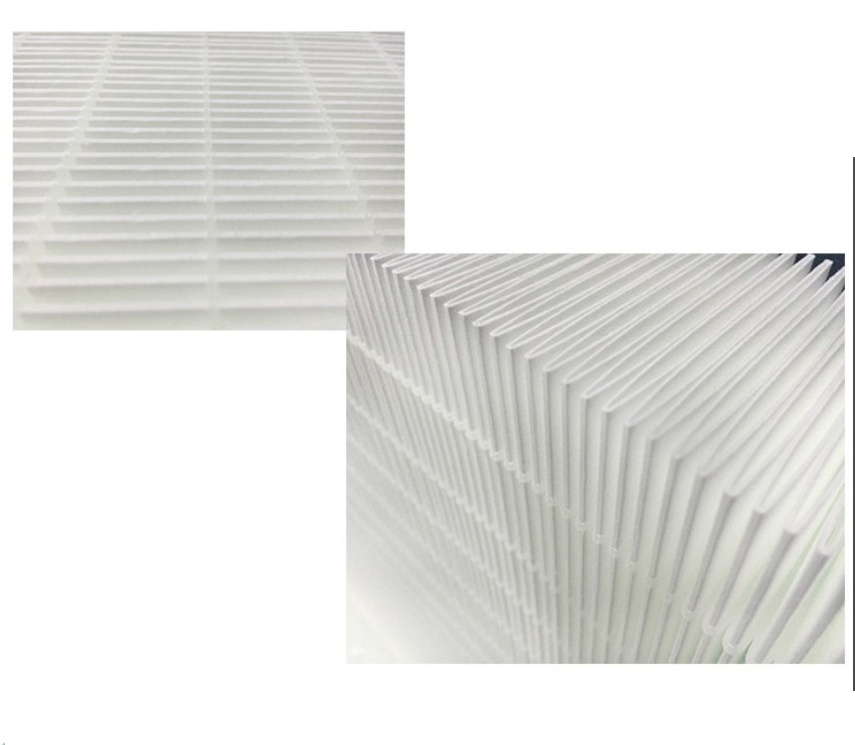

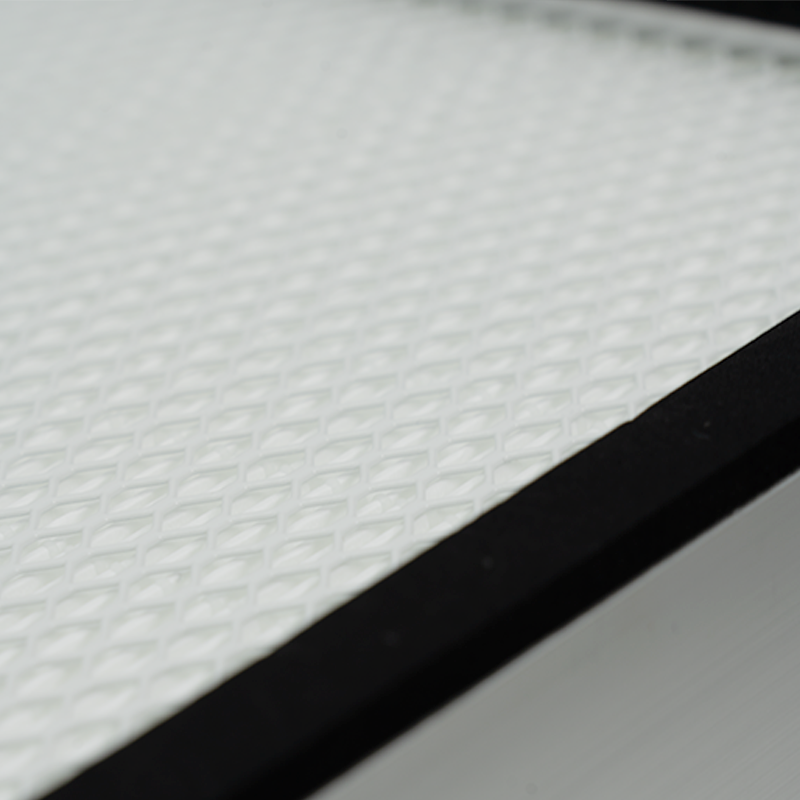

Amorair mini-pleated HEPA/ULPA filters are designed for environments with strict air quality standards, like hospitals and laboratories. They capture at least 99.95% of particles down to 0.1 microns. The filter media, supported by hot melt adhesive, is folded into a wave shape to maximize filtration area within a compact volume. Without separators, these filters are lighter and ideal for limited spaces.

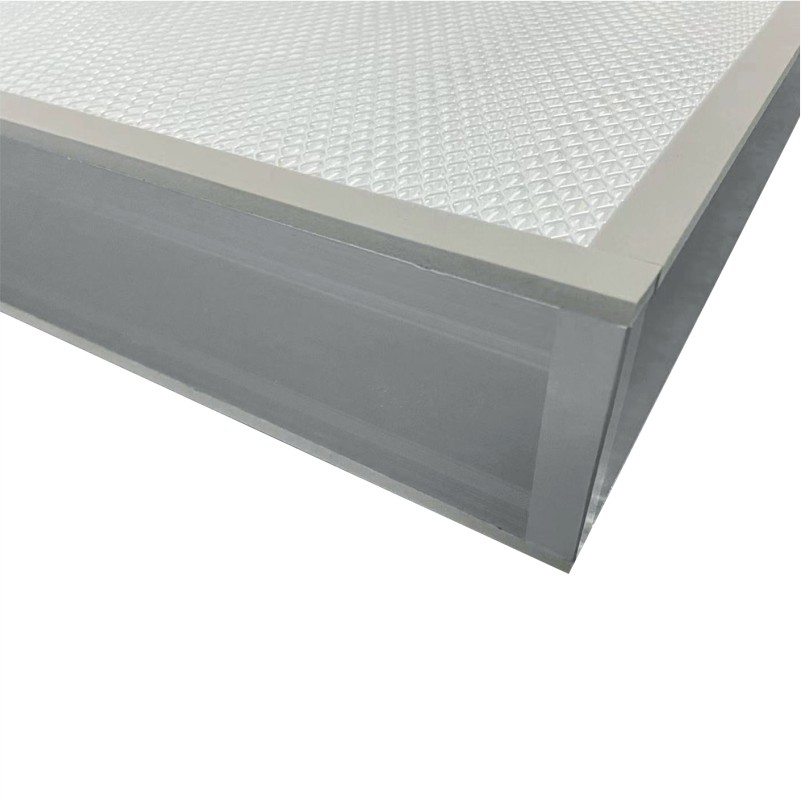

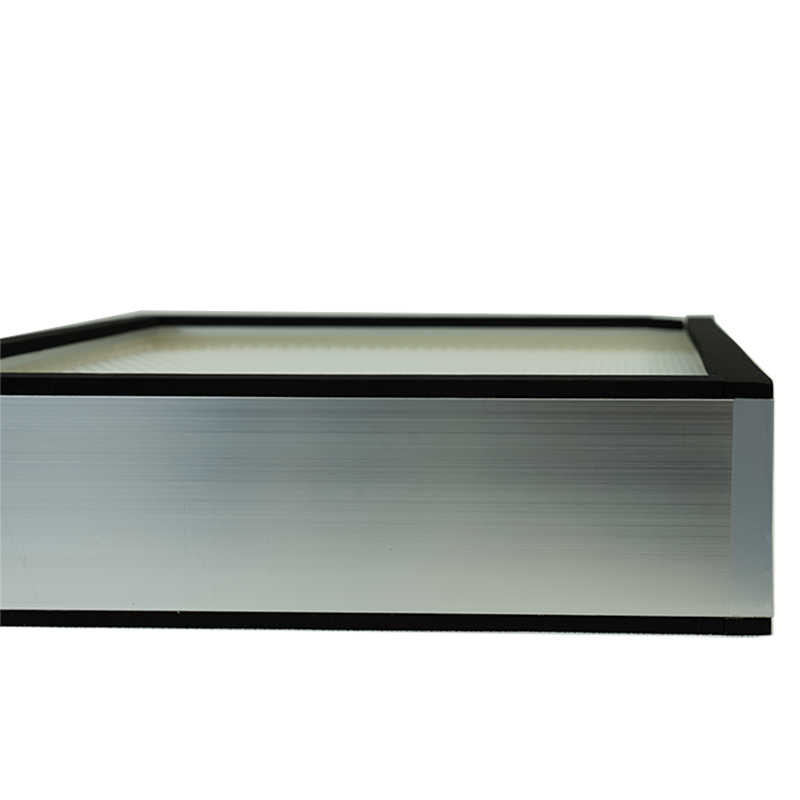

Frame Material Galvanized Steel / Aluminum
Media Fiberglass
U.S. Efficiency 99.95%, 99.995%, 99.9995%, 99.99995% @ MPPS
Euro Efficiency H13, H14, U15, U16
Max Temperature 70 °C (158 °F)
Sealant Polyurethane
Gasket Optional

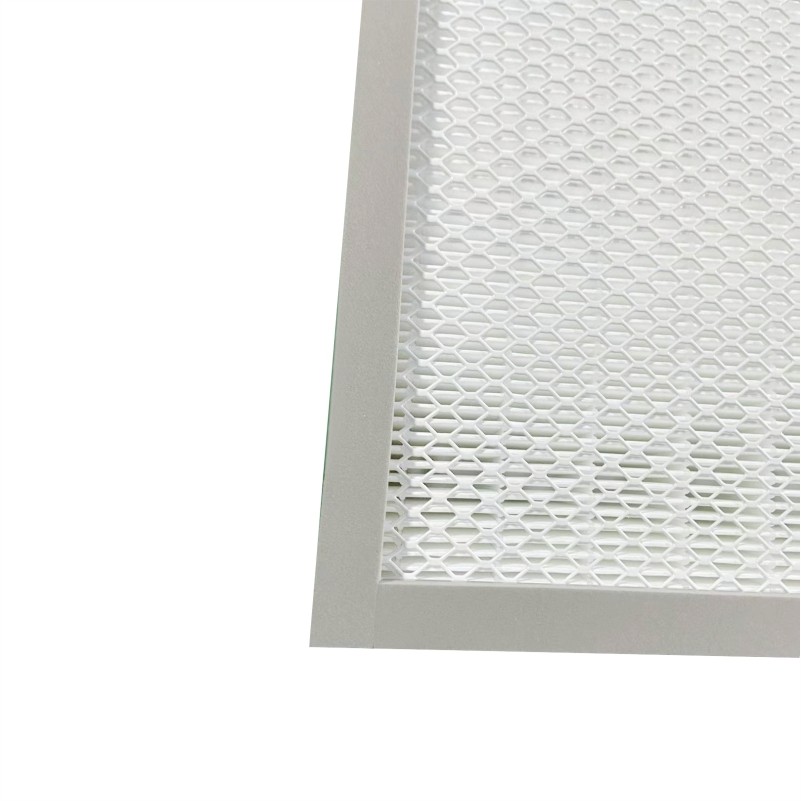

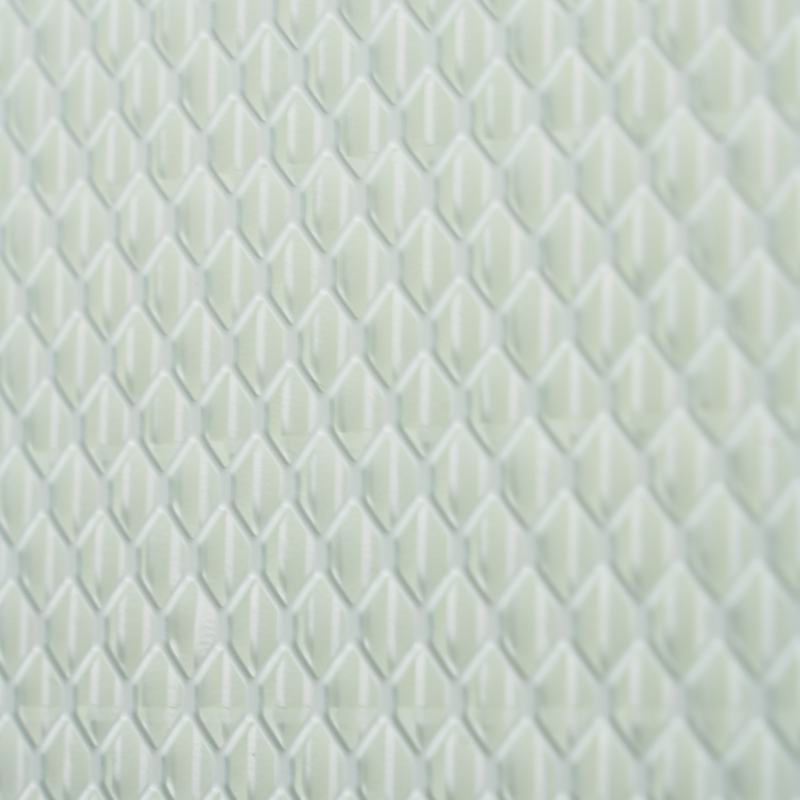

Protection Front and Back Faceguard Recommended
Depth 50mm (2″) / 70mm (2.75″) / 90mm (3.5″) / 110mm (4.33″), custom upon request
