Analysis of FFU Selection: AC Motor vs. DC Motor (EC)

The FFU (Fan Filter Unit) is the core filtration equipment for cleanrooms. When purchasing FFUs, procurement personnel often face a choice: select an AC motor or an EC motor. So, how do you make the choice? Amorair will provide you with professional advice based on several dimensions.

An FFU is a terminal air filtration device with its own power source. It consists of the housing, fan, HEPA/ULPA filter, and control system. By filtering the air and sending it out in a uniform laminar flow, it is widely used in fields such as semiconductors, biopharmaceuticals, and precision manufacturing.

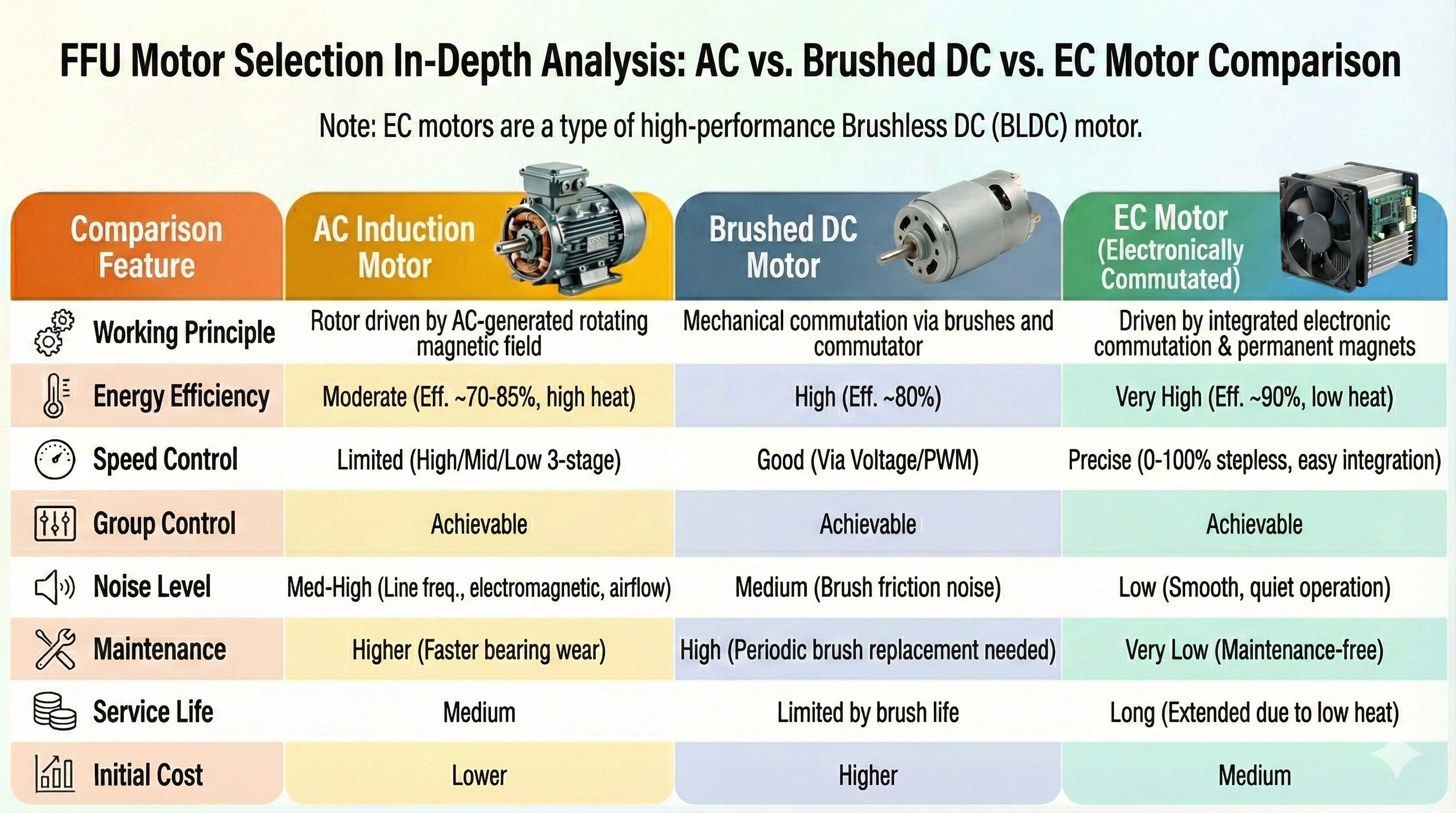

DC Motor vs. AC Motor—Comparison of Pros and Cons?

DC Motor vs. AC Motor—How to Choose?

For FFUs, the most common motor types on the market currently are the Alternating Current motor (AC) and the Electronically Commutated motor (EC). When choosing between these two motors, do not blindly pursue high quality; remember that your core demands are the most important.

If your budget is limited, or the application scenario is limited to short-term transitional facilities (such as temporary clean booths or short-term rental factory buildings), then the technologically mature and low-priced AC FFU is definitely a high cost-performance choice.

If you possess a modern factory focused on long-term operational benefits and large-scale application, the EC FFU is undoubtedly the best solution. Although its initial procurement cost is slightly higher, thanks to its excellent energy efficiency, the huge electricity savings and reduced air conditioning load it provides usually allow for the recovery of the price difference within 1.5 to 2 years. Furthermore, the EC motor's natural advantages in meeting intelligent group control management, real-time fault monitoring, and LEED green building certification make it a standard feature for high-standard cleanrooms.

In summary, AC represents the simple and extensive "usable standard" of the past, while EC defines the intelligent and efficient "future trend." If the budget is sufficient, we suggest you prioritize selecting the EC motor. This is not only a technological upgrade but also a wise long-term investment that is "expensive to buy, cheap to use," and the economic value it creates for you in the next 5-10 years will far exceed the current investment.
